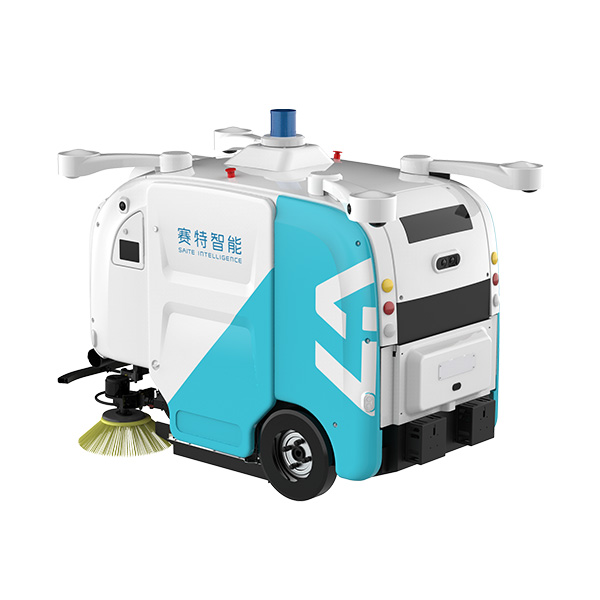

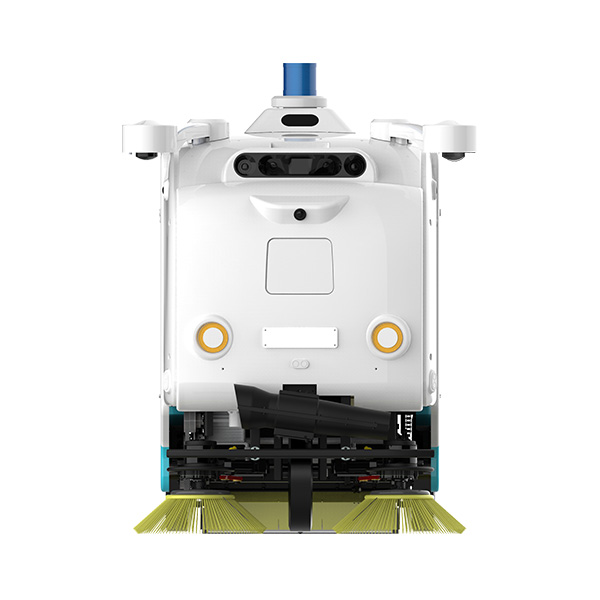

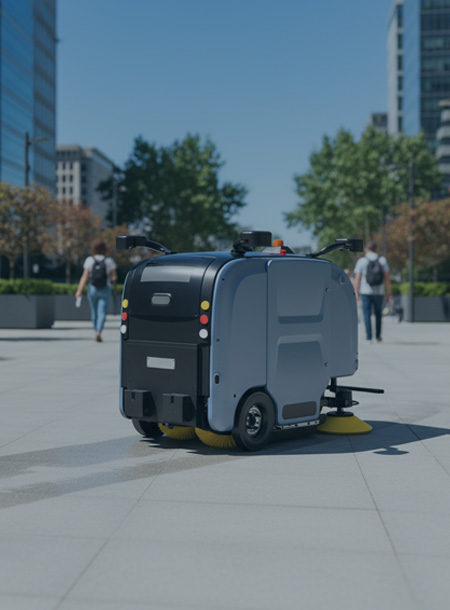

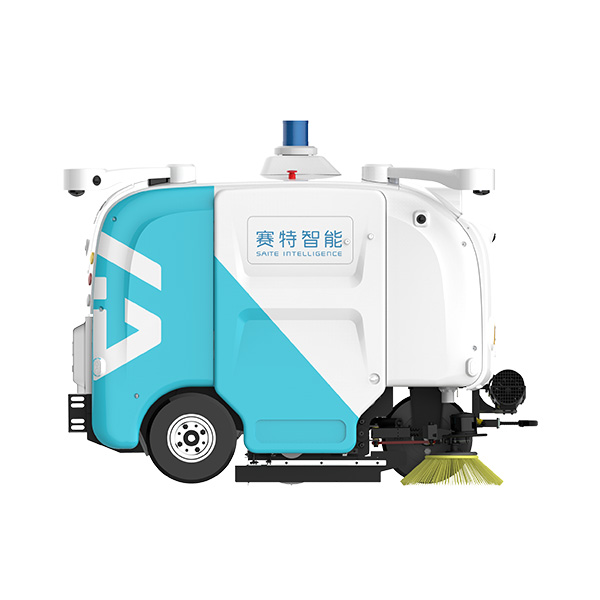

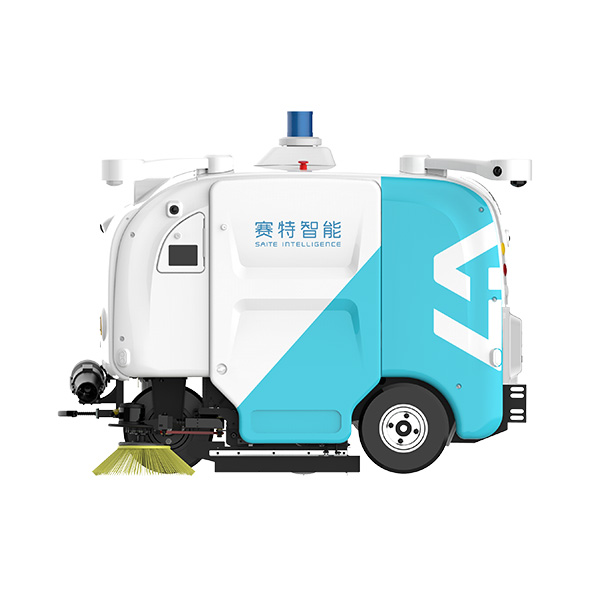

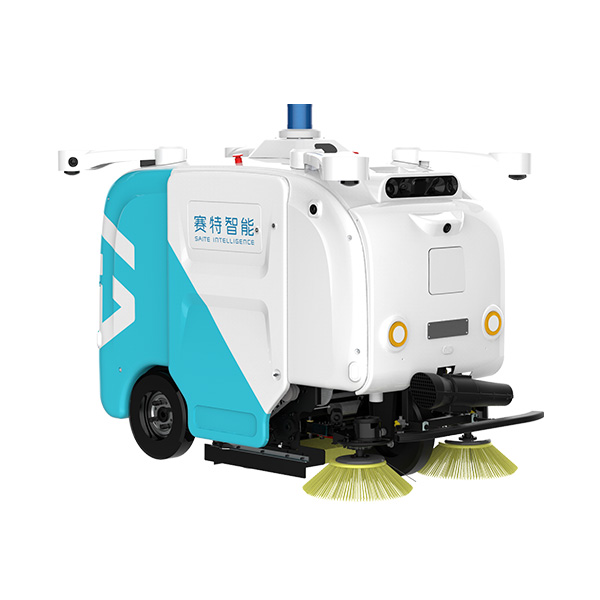

Sweeping Robot S5
Sweeping Robot S5 is a small autonomous sweeping robot specialized for the complex urban environments, such as communities, parks, sidewalks, etc.
Share
The robot is tiny and smart, integrated with high-precision positioning and navigation technologies, multiple sensors for 360-degree surrounding environment perception, and multi-dimensional safety protection settings.
At the same time, the robot can pack and dump the garbage automatically, to avoid exposure pollution and garbage transfer time, in order to realize effective collaboration of human and robots in outdoor cleaning work.
-
Auto Route Planning
-
Obstacles Avoidance
-
Auto Charging & Water Adding
-
Auto Garbage Packing & Dumping
-
1.1m Min. Passing Width
-
Auxiliary Blower & Sprinkler
-
Rain & Light Sensing
-
Traffic Light Passing
-
Auto Route Planning
Plan the overall and partial cleaning routes in advance, and adjust the actual road conditions flexibly
-

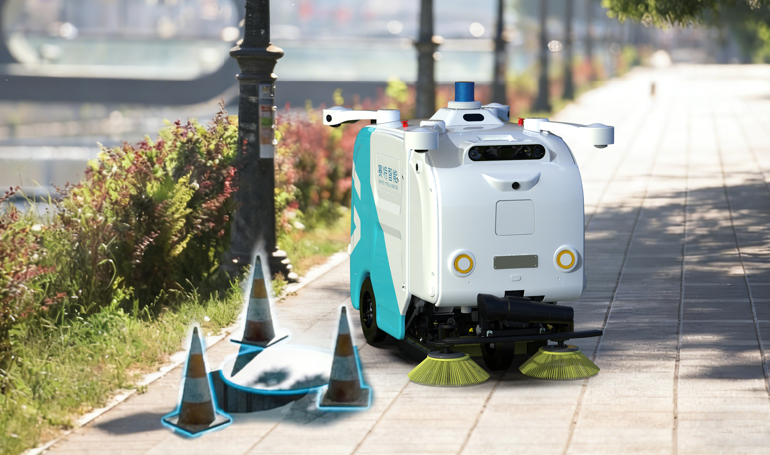

Obstacles Avoidance
Integrate LiDAR and visual camera sensors to avoid the obstacles around 360 degree
-

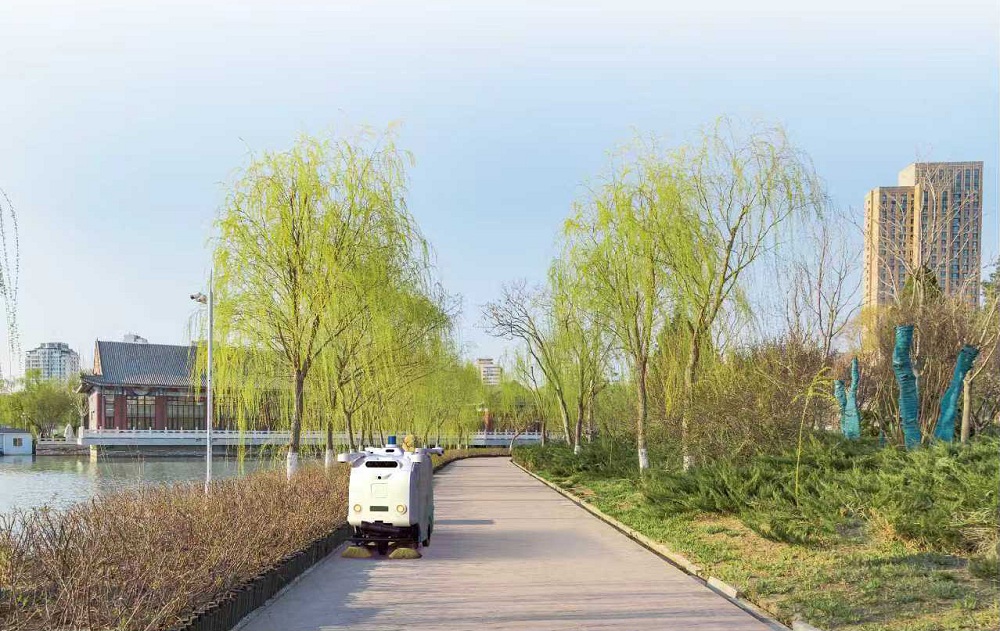

Auto Charging & Water Adding
Monitor battery and water volume and head to charging station to charge itself automatically
-

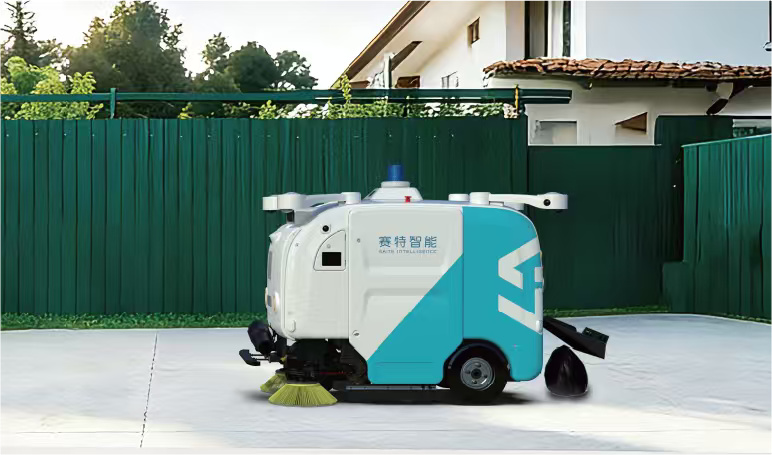

Auto Garbage Packing & Dumping
Automatically pack the garbage in 150L garbage bags, and dump in designated garbage station
-

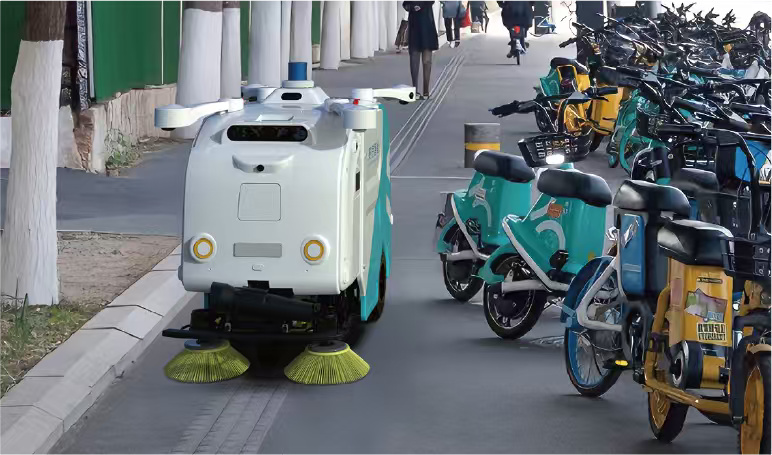

1.1m Min. Passing Width
Sweep width up to 1.3m and pass 1.1m narrow paths
-
Auxiliary Blower & Sprinkler
Blow the garbage together and collect them by once, and additional water sprinkling to avoid flying dust
-
Rain & Light Sensing
Sense the environment and weather to light on in dark and stop working in heavy rain
-
Traffic Light Passing
Sense the traffic light and pass the zebra crossing safely
Size L*W*H | 1810*850*1280mm | Battery Type | LiFePO4 |
Curb Weight | 450kg | Battery Capacity | 7.2kWh |
Sweep Width | 1300mm | Charging Time | 4h |
Turing Radius | 2m | Runtime | 6h |
Clean Efficiency | avg. 4700m2/h | Gradeability | 15° |
Cleanliness Rate | 97% | Crossing Height | 8cm |
Dustbin Volume | 100L | Working Noise | <75dB |
Water Tank Volume | 50L | Protection Class | IPX5 |
Max. Speed | 5.4km/h | Work Temp. | -10~50℃ |
